Double Roller Stone Crusher

Applicable materials:Coal, Coal gangue, cement, silicate, River pebbles, calcite, quartz, glass, marble, pebbles, bentonite, iron ore, lapis lazuli, mountain stone, limestone, weathered sand, pyroxene, granite, basalt, etc.

Application scope: Highway, railway, high-rise buildings, municipal, hydropower dam construction, concrete mixing station, sand and stone field, etc.

  • Feed size:25-200mm
  • Productive capacity:4-500t/h

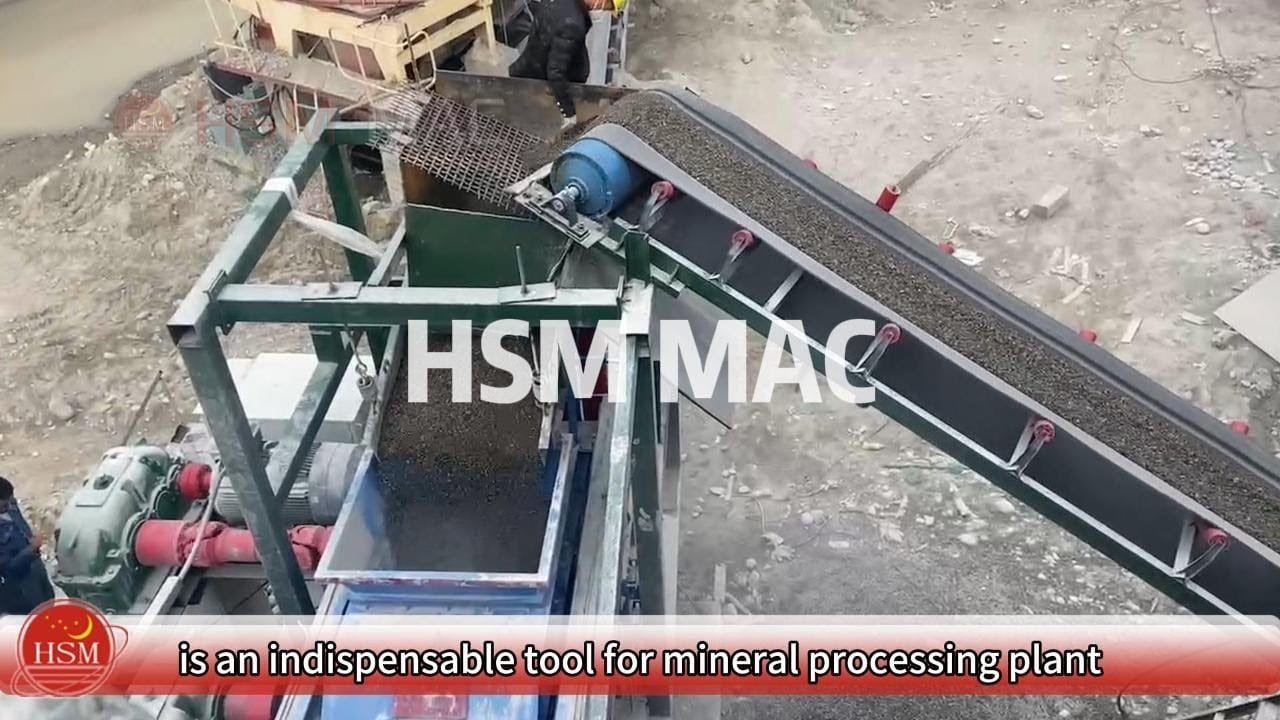

Machine-testing Video

It is suitable for crushing sticky stone material into medium size. Roller crusher utilizes two rollers rotating in opposite direction to crush the material, which consists of motor, bracket, fixed rollers, movable rollers and springs. Most of its roller surfaces are glossy, and the bearings of the movable rollers can be moved along the machine frame and held against it by springs. Therefore, When a particularly hard object accidentally drops into the machine, the bearing can be moved out of the way to expel it. Furthermore, before the machine runs, the gap between the two rolls should be adjusted with shims to ensure the crushing size.

Suitable materials for roll crusher

Double roller stone crusher working principle

The double roller stone crusher operates through rollers. The pebbles, put into the machine through the inlet, are crushed by the squeezing between the rollers. The discharge size can be controlled by adjusting the gap between the two rollers. If the gap becomes larger, the discharged size becomes larger. While the gap becomes smaller by compressing spring, the discharge size also becomes smaller.

roller crusehr Working Principle

Product category

Double roller stone crusher is divided into several kinds: Spring fine crushing sand making machine, cardan shaft drive fine crushing sand making machine, hydraulic fine crushing sand making machine.

all kinds of stone roller crusher

You can choose the machine according to your budget and the facts.

Product parameter
